Float glass

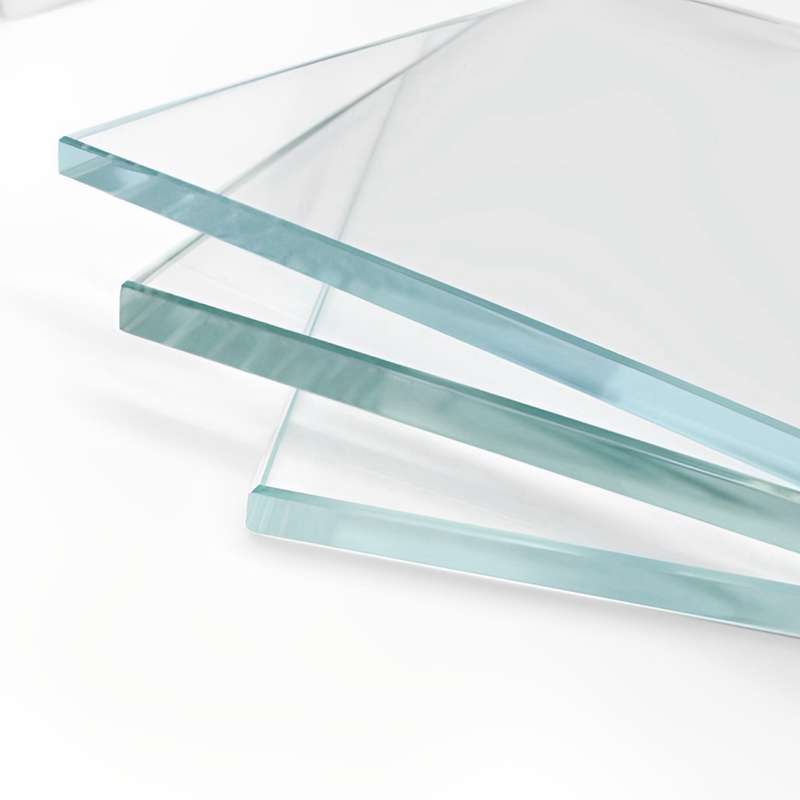

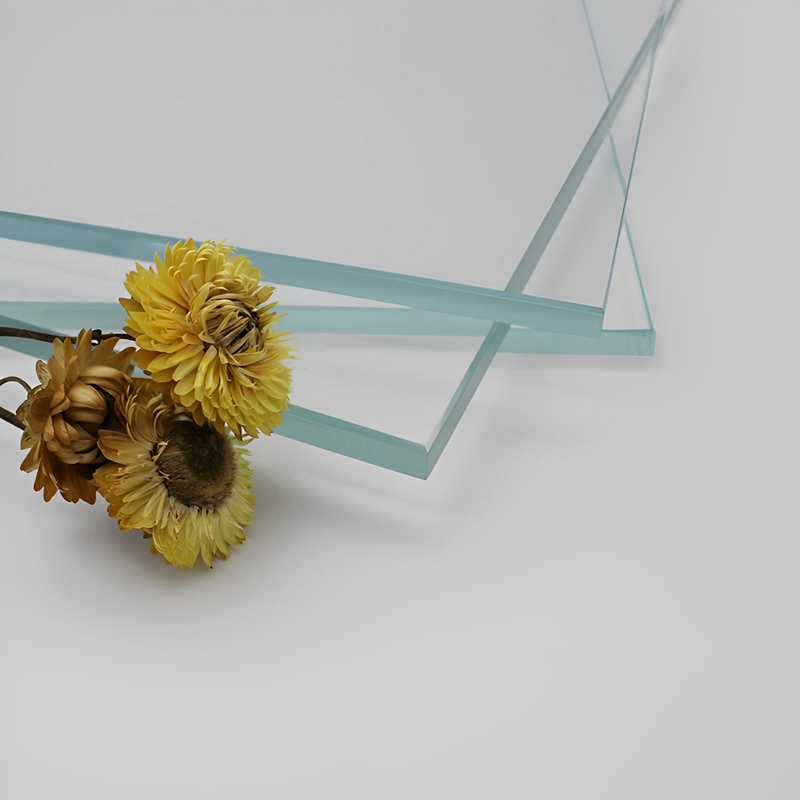

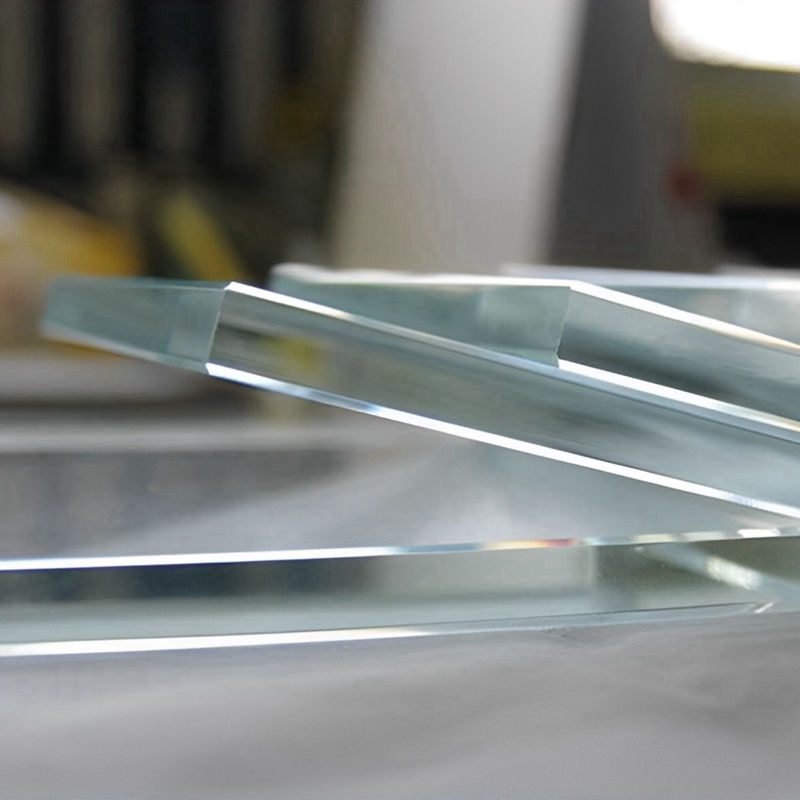

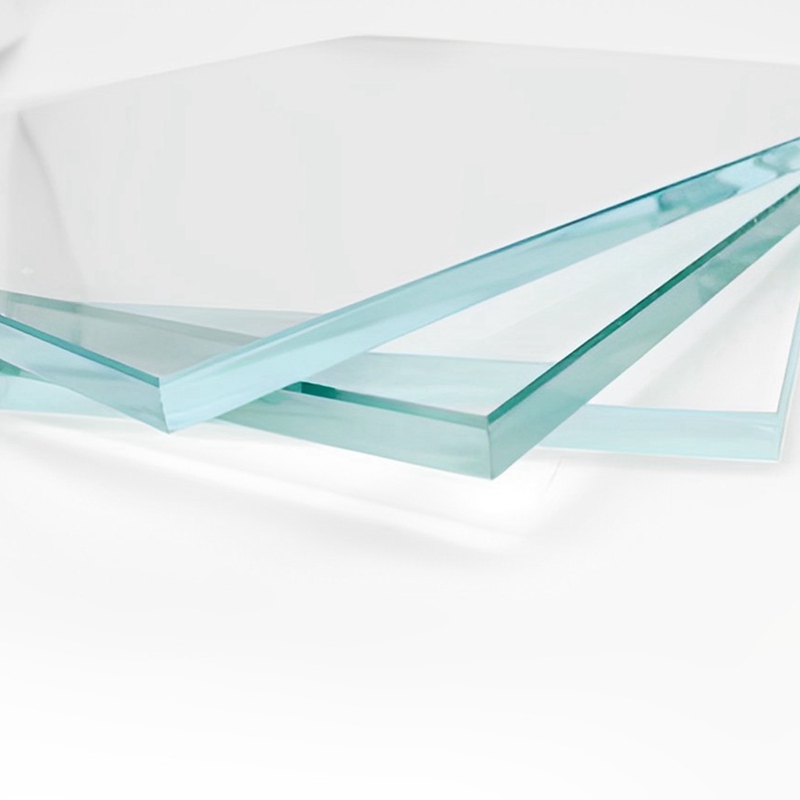

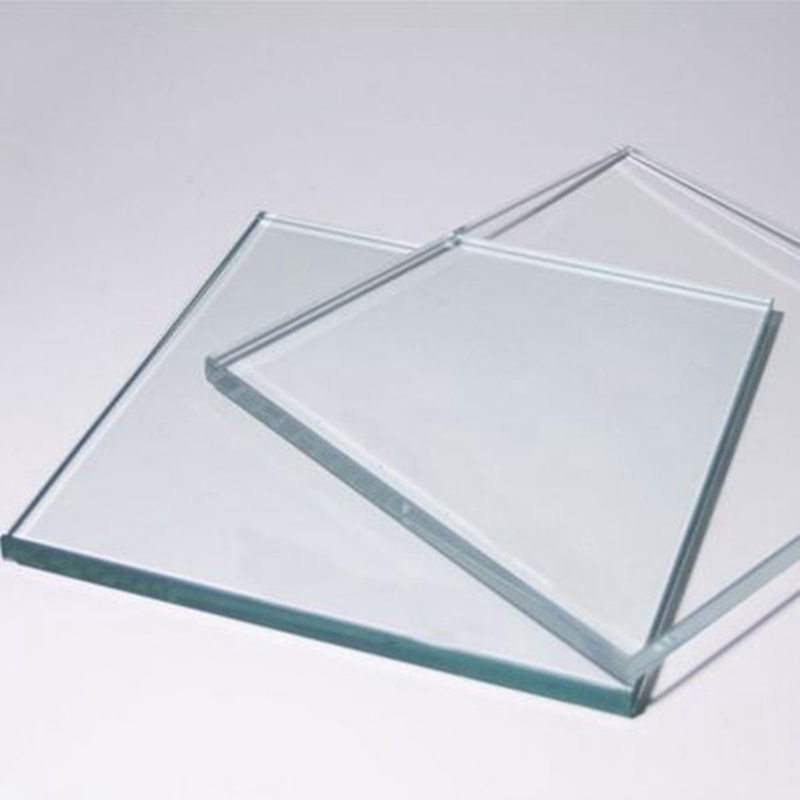

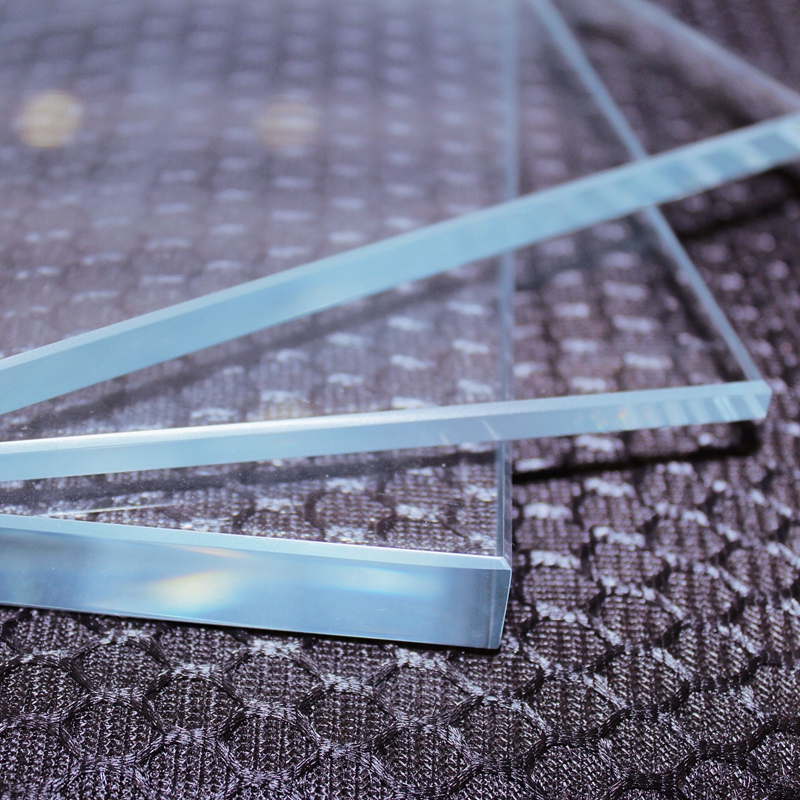

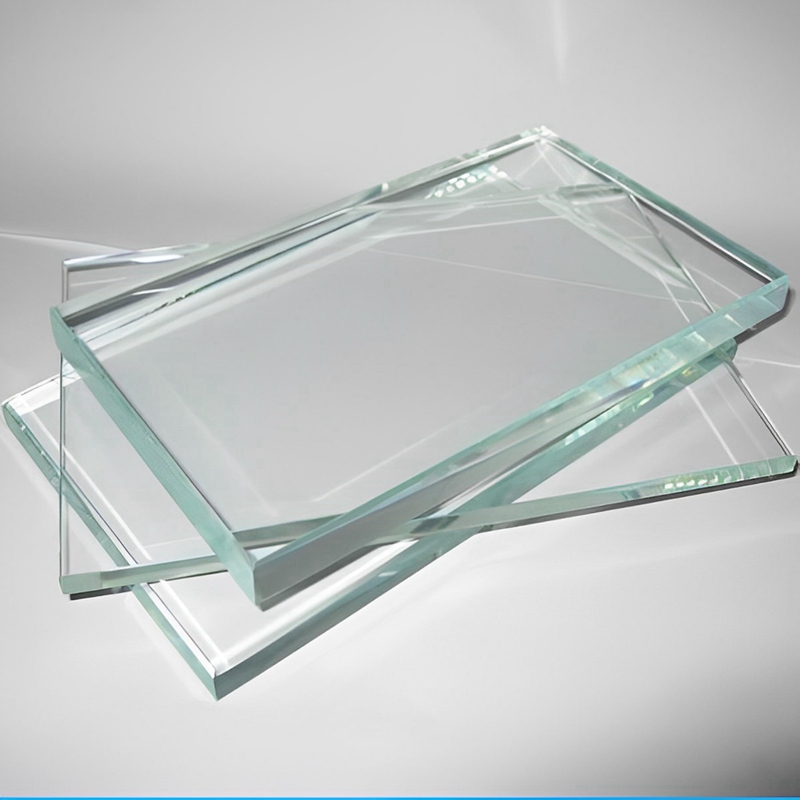

Ultra Clear Manufacturer Wholesale Low Iron Glass, High Transparency Float Glass

> Product Category : Float glass

> Product Number : Ultra clear float glass

Features

The glass has a crystal-clear perfect and high visible light transmittance.

Contains fewer impurities such as NiS, which reduces the self-explosion rate of glass after tempering.

Has low iron content and less absorption in the green band of visible light, ensuring the color consistency of the glass.



Ultra Clear Manufacturer Wholesale Low Iron Glass, High Transparency Float Glass

Product Description

Low-iron float glass is a kind of flat glass with high transparency, high light transmission, and high smoothness. It is a new type of deep-processing glass, and also a new type of advanced structural glass that is environmentally friendly, economical, and energy-saving. The glass is low-iron float glass made by a special process. It doesn't look green like clear float glass, it looks like colorless crystal with high light transmittance.

Product Specifications

NO

Product name

Visible Light Transmittance

Visible Light Reflectivity

Solar Energy Transmittance

Solar Energy Reflectivity

Total solar transmittance

1

3mm

91.50

8.48

91.20

8.32

91.50

2

4mm

91.32

8.50

90.86

8.35

91.00

3

5mm

91.21

9.51

90.60

8.34

90.30

4

6mm

91.16

8.54

90.30

8.36

90.10

5

8mm

91.02

7.11

90.10

8.34

89.60

6

10mm

90.85

7.09

88.50

8.24

88.60

7

12mm

90.62

6.73

87.80

8.18

88.00

8

15mm

90.43

7.58

85.60

8.05

88.00

9

19mm

90.01

7.12

83.90

7.92

86.20





KXG Ultra Clear Glass

Thickness

3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm 25mm

Size

1830x2440mm, 2630x3660mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2250x3660mm, 2440x3300mm, 2440x3660mm, 2740x3660mm, 3300x3660mm, 3300x4280mm, 3300x4580mm, 3300x4880mm,

Max size could reach to 3000x13000mm

Any other size can be produced as per customer’s requirement.



Applications of clear float glass:

1.Can be cut to size and directly used for glass windows and furniture glass.

2.Can be coated for a glass mirror.

3.Can be tempered, laminated, and insulated for wide applications of construction and furniture.

Application

KXGlass Business Introduction

Production Process

Float Glass

Float Glass

Cutting

Cutting

Grinding And Polish

Grinding And Polish

Tempering

Tempering

Package & Shipping

1.Separate each piece of glass with a cork mat.

2.Suitable for shipping and land transport strong export wooden /plywood crates.

3.Iron belt or another material belt for consolidation.

4.The four corners of the glass will have protective corners.

5.Each box contains desiccant.

Kraft paper spacing

Soft Rubber Mat

Desiccant

Plywood crates

https://www.kxglass.com/Public/www/images/pro-shouhou-img.png

After-sales Service:

• Quick quote, reply requirements within 12 hours

• Technical support, design and installation suggestions

• Review your order details, double check and confirm your order without problems

• Entire process follow your order and update you in time

• Quality inspection standard and QC report according to your order

• Production photos, packing photos, loading photos sent in time if you need

• Assist or arrange the transportation and sent you all documents on time

1.Who is KXG Industries?
KXG Industries is professional glass manufacturer, is a reputable glass deep-processing corporation in China.

2.How long is your delivery time?
Generally within 3 -4weeks.

3.What's the MOQ?
MOQ is 100 square meter.

4.How about sample fees?
Samples are free, can be ready in 1-2 weeks.

5.How is the warranty?
Five years warranty for Laminated Glass, and 10 years warranty for Tempered Glass, Insulated Glass, Windows & Doors and Curtain Wall etc.

6.How to get a quotation?
We need the information of glass composition, thickness, sizes, quantity and processing etc.
