Heat soak test glass

Jumbo Size Heat Soak Tempered Clear Glass Office Partition

> Product Category : Heat soak test glass

> Product Number : Heat soak test glass

Features

Easy to clean: Smooth surface is easy to clean and maintain.

High transparency type: extremely high light transmittance, excellent visual effect.

Safety: After high-temperature treatment, the glass's impact and heat resistance have been enhanced.

Beautiful and elegant: modern design, suitable for various architectural styles, enhancing spatial grade.

Low self-explosion rate: Hot dip treatment and pre-detonating glass with impurities are used to reduce the self-explosion rate.

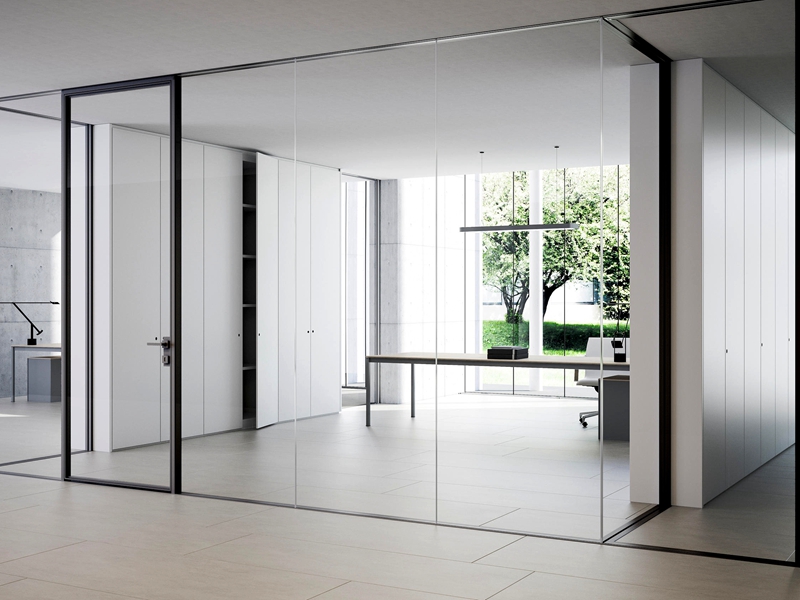

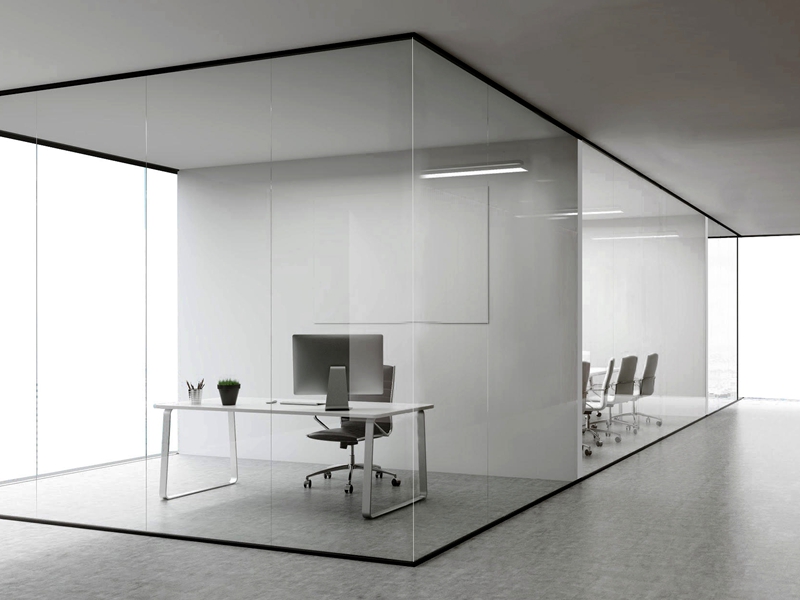

Jumbo Size Heat Soak Tempered Clear Glass Office Partition

Product Description

Heat soaking treatment is a quality control process carried out by placing ultra clear toughened glass panels inside an oven chamber and subjecting the glass to a prolonged temperature of up to 290 degrees Celsius in a controlled cycle to accelerate nickel sulfide expansion. As a result, glass containing nickel sulfide inclusions are more likely to break in the heat soak chamber, thus reducing the risk of potential breakages after installation.

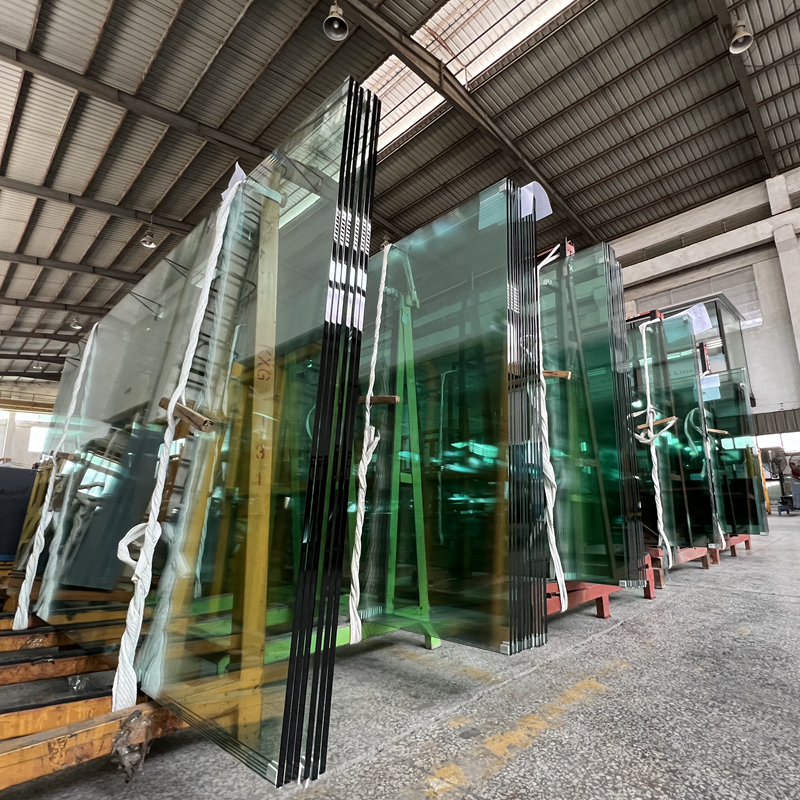

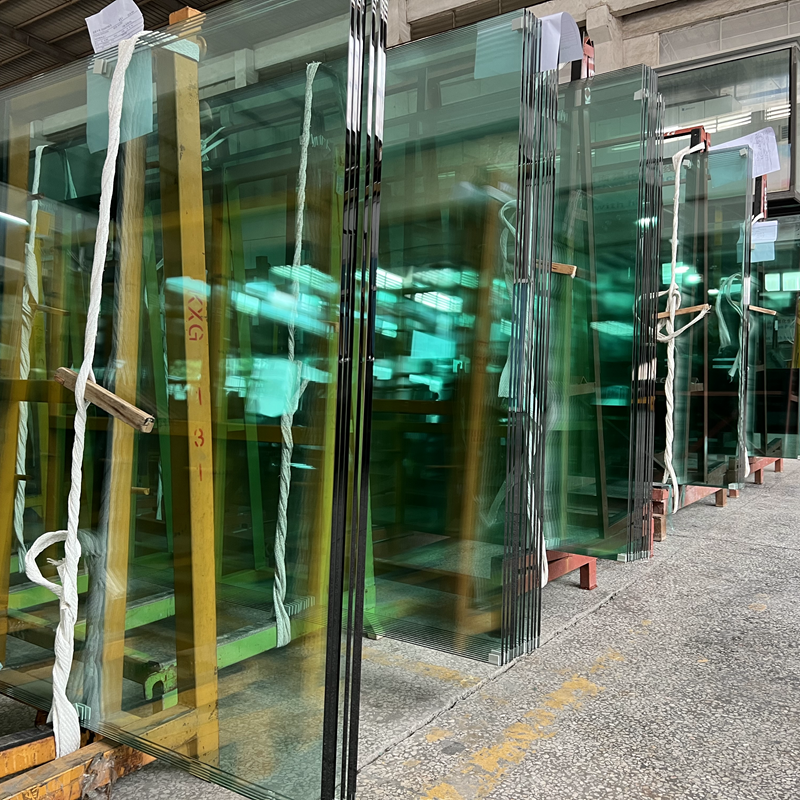

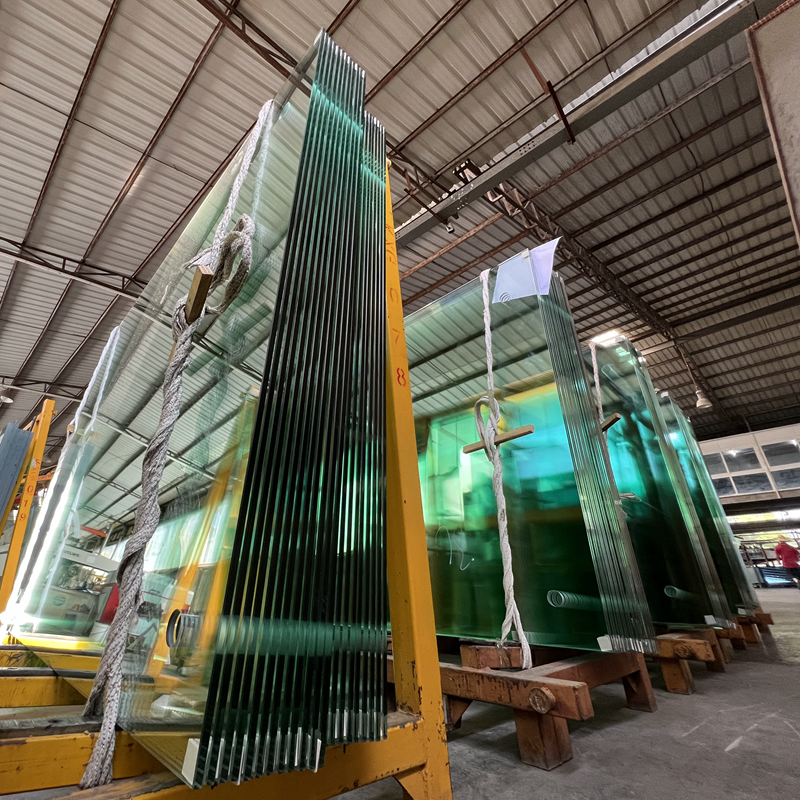

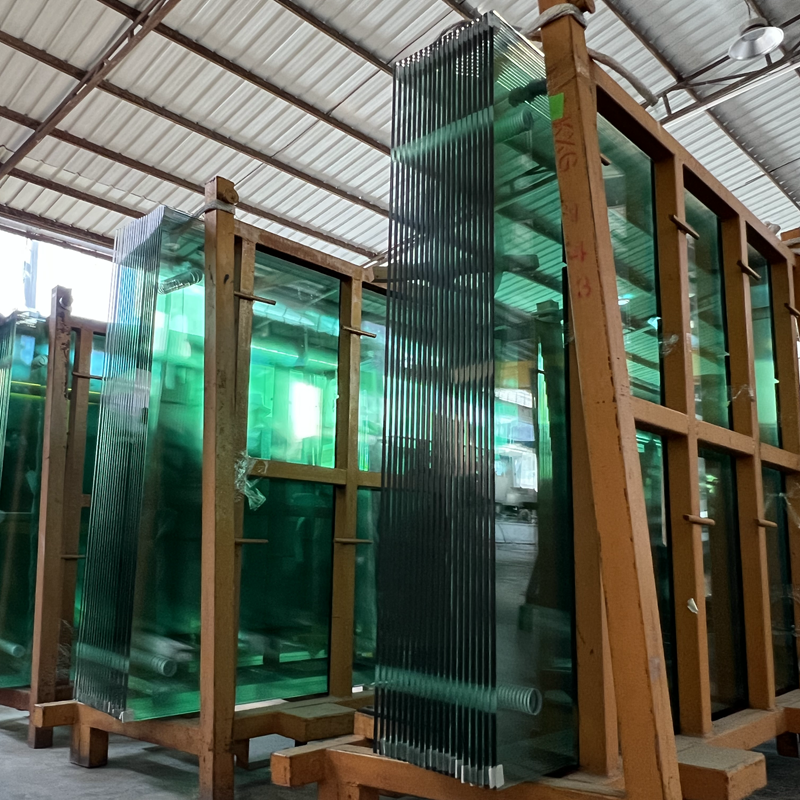

Jumbo size glass plates are prone to self explosion risks. By homogenization treatment, glass containing impurities can be detonated in advance, effectively reducing the self explosion rate of tempered glass after factory installation.

Product Specifications

Product Name

Heat Soak Toughened Jumbo Size Glass

Thickness

4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm

Max size

2440*15000mm;1300*3300mm

Min size

100*300mm

Quality standard

BS/EN 14179

Corner

Shape Corner,polished radius,dubbed corner,etc.

Edge

Polished edge,pencil edge,flat edge,etc

Things to Consider:

Glass for heat soak treatment must be tempered glass.

Glass cannot be cut down or drilled after it has been toughened.

Widely used in windows, doors, facades, partition walls, curtain walls, etc.

KXGlass Business Introduction

Production Process

Float Glass

Float Glass

Cutting

Cutting

Grinding And Polish

Grinding And Polish

Tempered

Tempered

Heat soak test

Heat soak test

Package & Shipping

1.Separate each piece of glass with a cork mat.

2.Suitable for shipping and land transport strong export wooden /plywood crates.

3.Iron belt or another material belt for consolidation.

4.The four corners of the glass will have protective corners.

5.Each box contains desiccant.

Cork mat and protective corners

Soft Rubber Mat

Desiccant

Plywood crates

https://www.kxglass.com//Public/www/images/pro-shouhou-img.png

After-sales Service:

• Quick quote, reply requirements within 12 hours

• Technical support, design and installation suggestions

• Review your order details, double check and confirm your order without problems

• Entire process follow your order and update you in time

• Quality inspection standard and QC report according to your order

• Production photos, packing photos, loading photos sent in time if you need

• Assist or arrange the transportation and sent you all documents on time

1. Nature of the company?
We are a glass processing factory located at No. 10 Jinchuan 1st Road, Jinchuan, Zhao Lin, Dongguan City, Guangdong.

2.Whether the company's products have international third-party independent testing certificate?
Our glass is certified to ANSI, CE, AS/NZS, CCC, etc.

3. The production time of the product in large quantities:
Usually 10-15 days, depending on the order quantity, we can support urgent orders.

4.What's the MOQ?
MOQ is 100 square meter.

5.Do you provide free samples?
Yes, welcome to contact us to discuss your project together.

6. Whether the product itself supports OEM customization?
Yes.

7.How is the warranty?
Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).

8.How to get a quotation?
We need the information of Glass types, thickness, sizes, quantity and processing requirements etc.
