Product Description

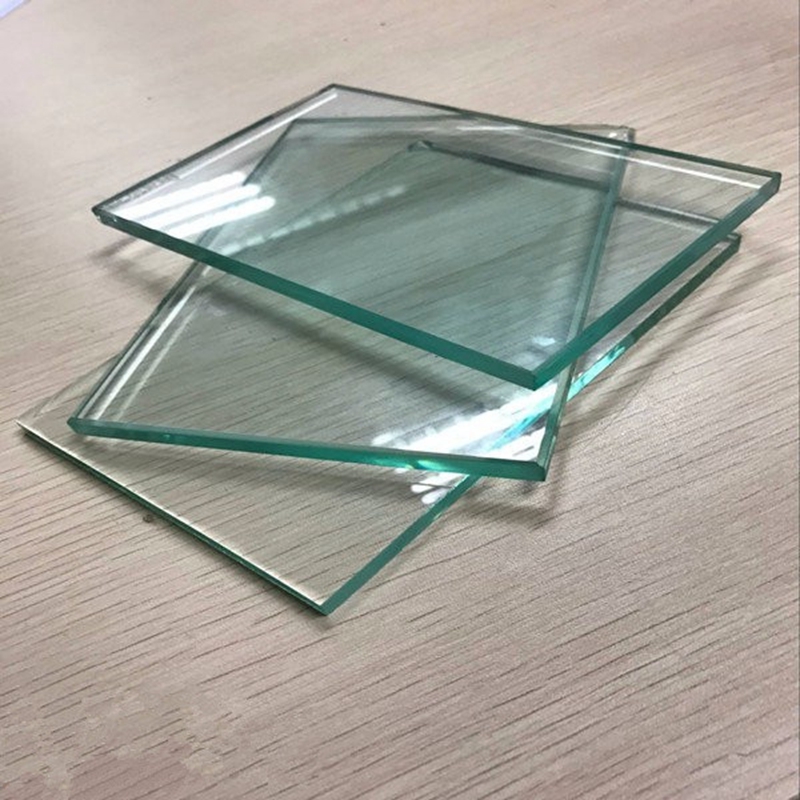

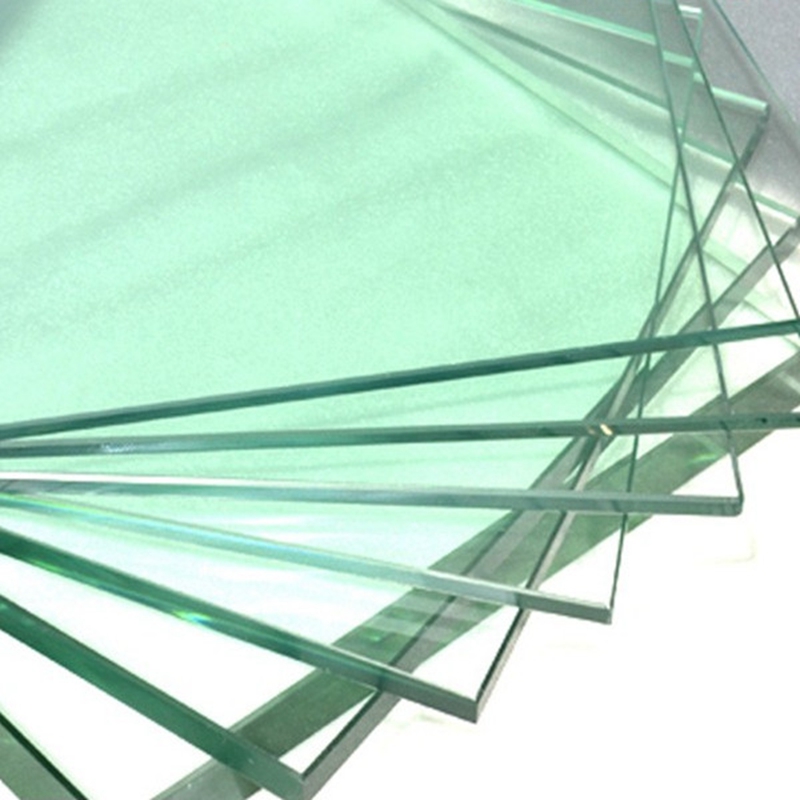

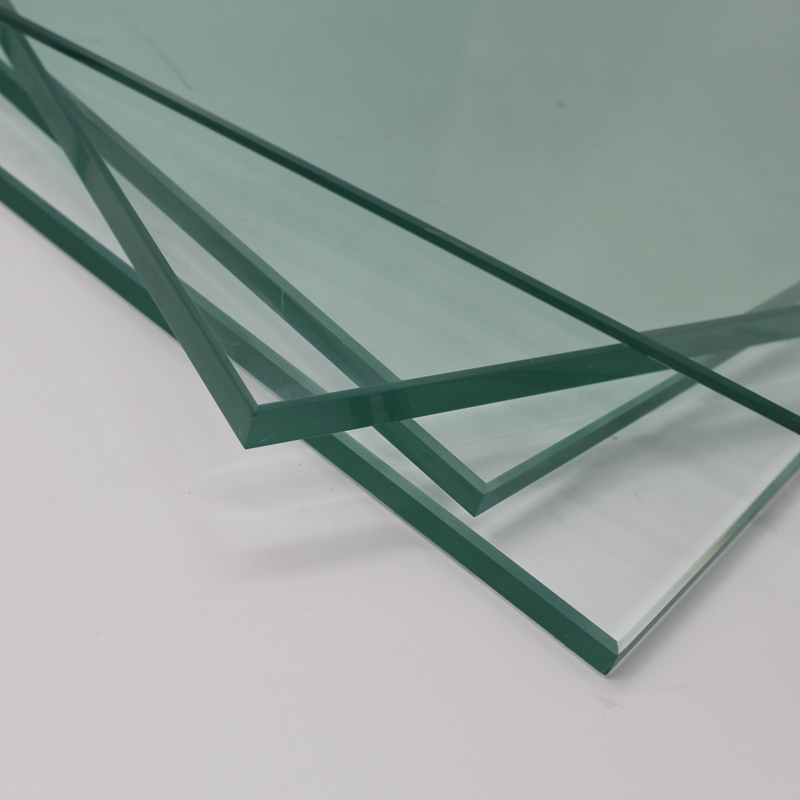

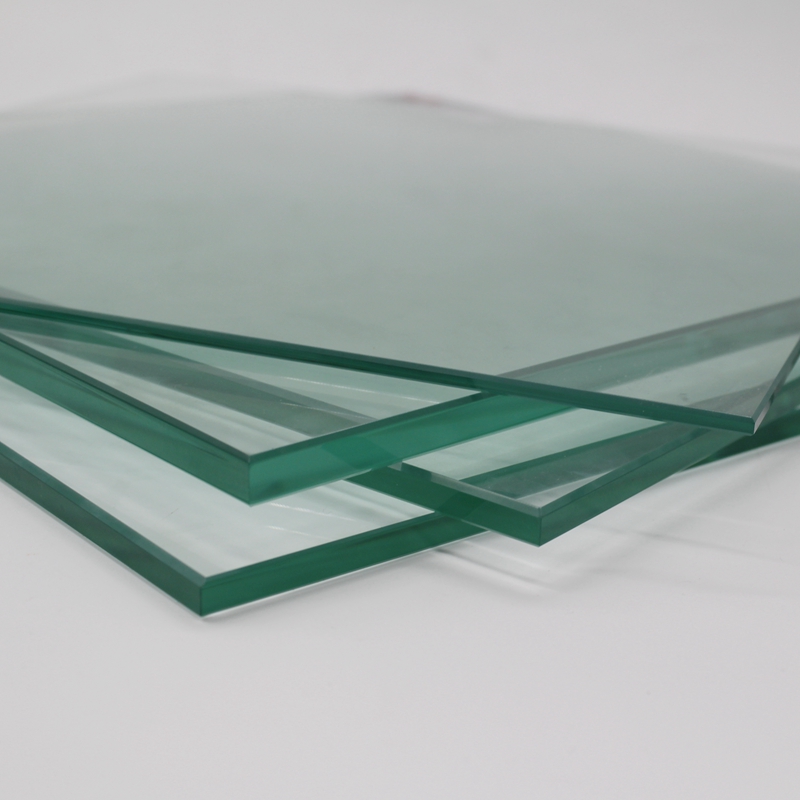

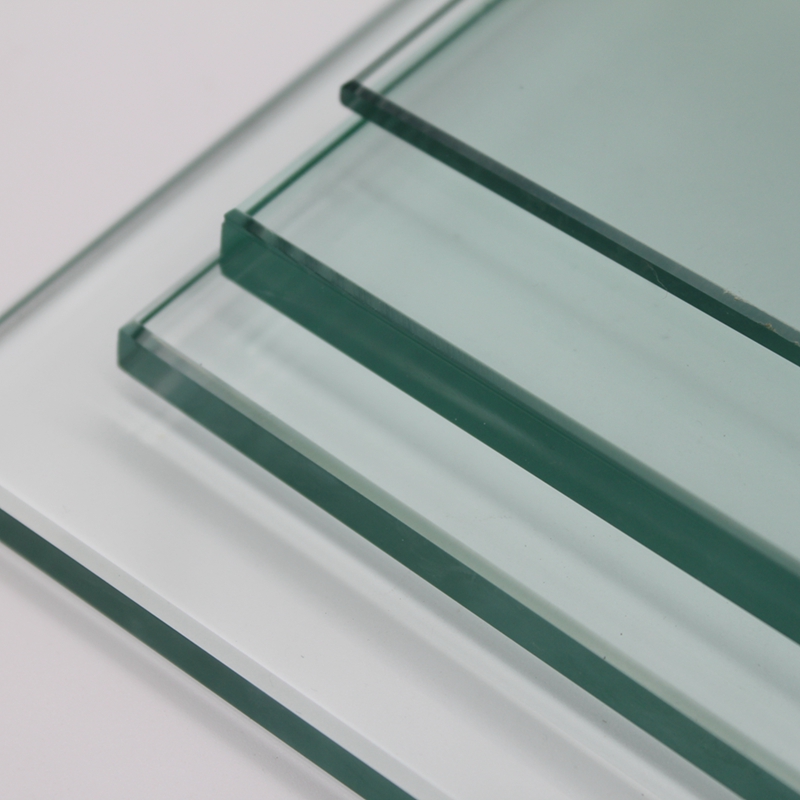

Transparent float glass, known as Clear Float Glass, is made by pouring molten glass through a control gate into a tin groove.After floating, the glass enters a cooling system (cold groove), solidifying into a transparent float glass panel with perfectly parallel surfaces.
Product Specifications
| Product name | Visible light transmittance | U-Value(V/m2.K) | SC | |
| Summer day | Winter night | |||
| 4mm clear glass | 90.17 | 5.46 | 5.4 | 1 |
| 5mm clear glass | 89.83 | 5.44 | 5.38 | 0.99 |
| 6mm clear glass | 89.34 | 5.4 | 5.35 | 0.97 |
| 8mm clear glass | 88.64 | 5.34 | 5.3 | 0.95 |
| 10mm clear glass | 87.52 | 5.28 | 5.24 | 0.92 |
| 12mm clear glass | 87.27 | 5.23 | 5.19 | 0.91 |
| 15mm clear glass | 86.3 | 5.15 | 5.11 | 0.89 |
| 19mm clear glass | 84.99 | 5.05 | 5.02 | 0.85 |
| 22mm clear glass | 83.25 | 4.97 | 4.94 | 0.79 |
| 25mm clear glass | 82.75 | 4.9 | 4.88 | 0.8 |
| KXG Clear Float Glass | |
| Thickness | 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm 25mm |
| Size | 1830x2440mm, 2630x3660mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 2250x3660mm, 2440x3300mm, 2440x3660mm, 2740x3660mm, 3300x3660mm, 3300x4280mm, 3300x4580mm, 3300x4880mm, Max size could reach to 3000x13000mm |
| Any other size can be produced as per customer’s requirement. | |
Applications of clear float glass:
1.Clear float glass(Transparent float glass) can be cut to size and directly used for glass windows and furniture glass
2.Clear float glass (Transparent float glass)can be coated for a glass mirror.
3.Clear float glass(Transparent float glass) can be tempered, laminated, and insulated for wide applications of construction and furniture.

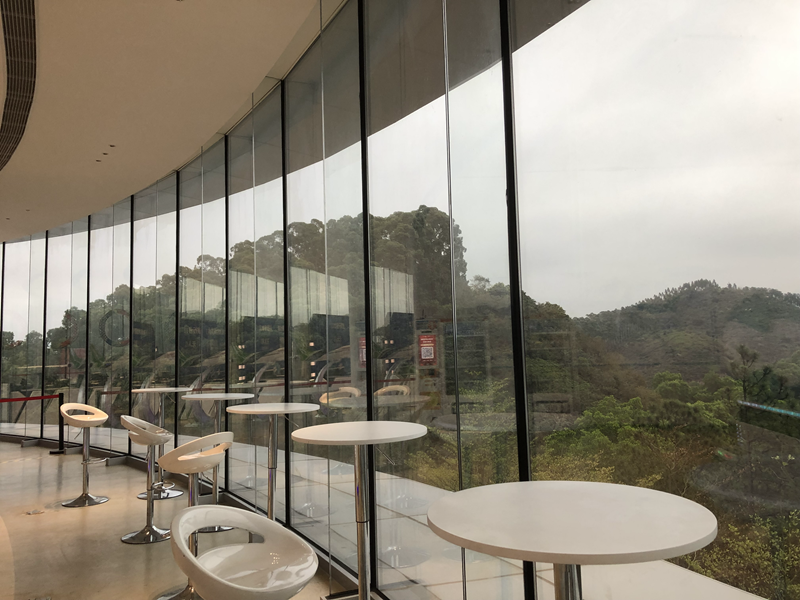

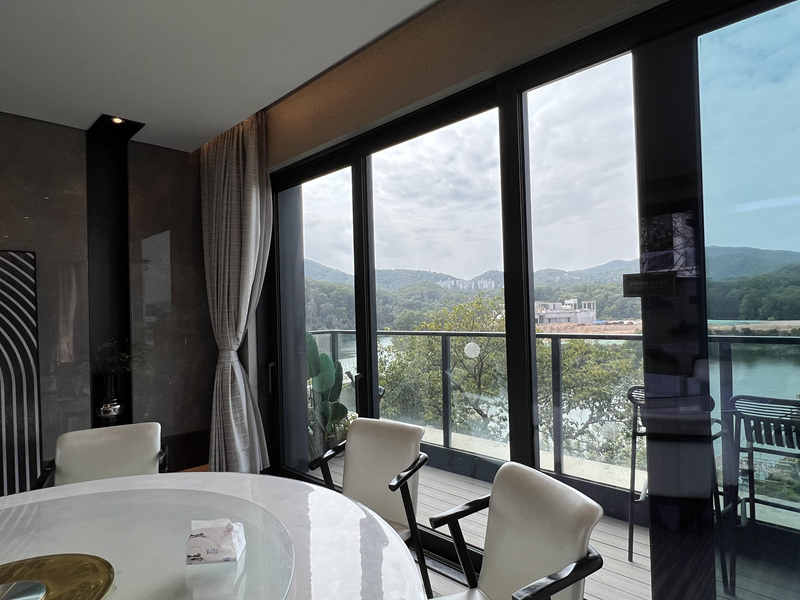

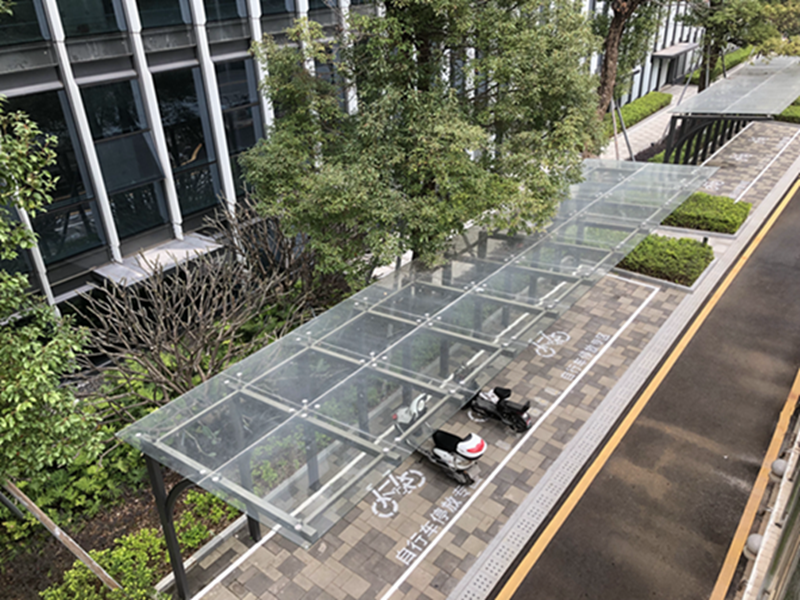

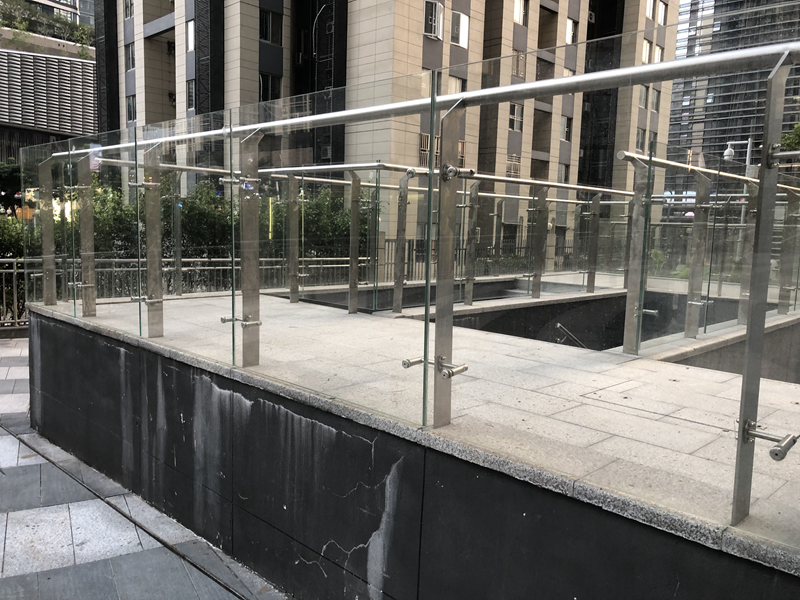

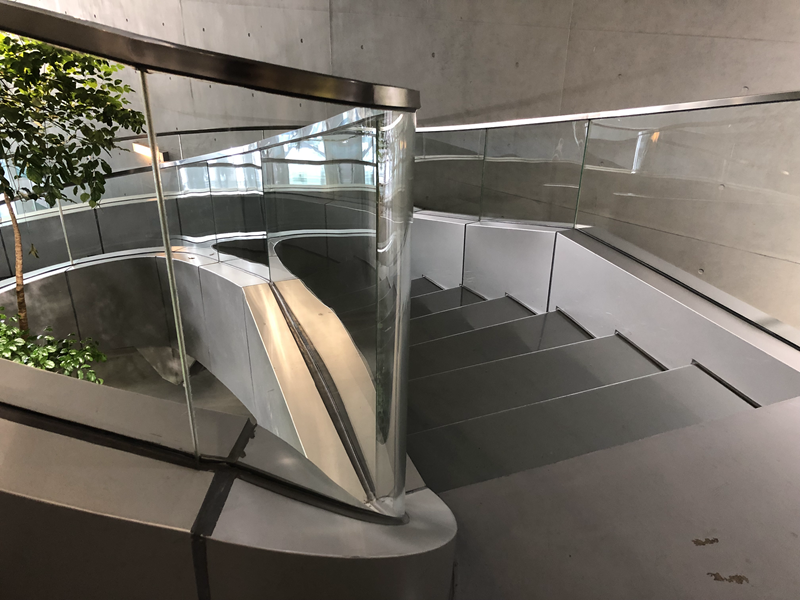

Application
KXGlass Business Introduction
Production Process
Float Glass
Cutting
Grinding And Polish
Tempering
Package & Shipping
Separate each piece of glass with a cork mat.
Suitable for shipping and land transport strong export wooden /plywood crates.
Iron belt or another material belt for consolidation.
The four corners of the glass will have protective corners.
Each box contains desiccant.
Kraft paper spacing
Soft Rubber Mat
Desiccant
Plywood crates
After-sales Service:
Quick quote, reply requirements within 12 hours
Technical support, design and installation suggestions
Review your order details, double check and confirm your order without problems
Entire process follow your order and update you in time
Quality inspection standard and QC report according to your order
Production photos, packing photos, loading photos sent in time if you need
Assist or arrange the transportation and sent you all documents on time
FAQ
1.Who is KXG Industries?
KXG Industries is professional glass manufacturer, is a reputable glass deep-processing corporation in China.
2.How long is your delivery time?
Generally within 3 -4weeks.
3.What's the MOQ?
MOQ is 100 square meter.
4.How about sample fees?
Samples are free, can be ready in 1-2 weeks.
5.How is the warranty?
Five years warranty for Laminated Glass, and 10 years warranty for Tempered Glass, Insulated Glass, Windows & Doors and Curtain Wall etc.
6.How to get a quotation?
We need the information of glass composition, thickness, sizes, quantity and processing etc.
