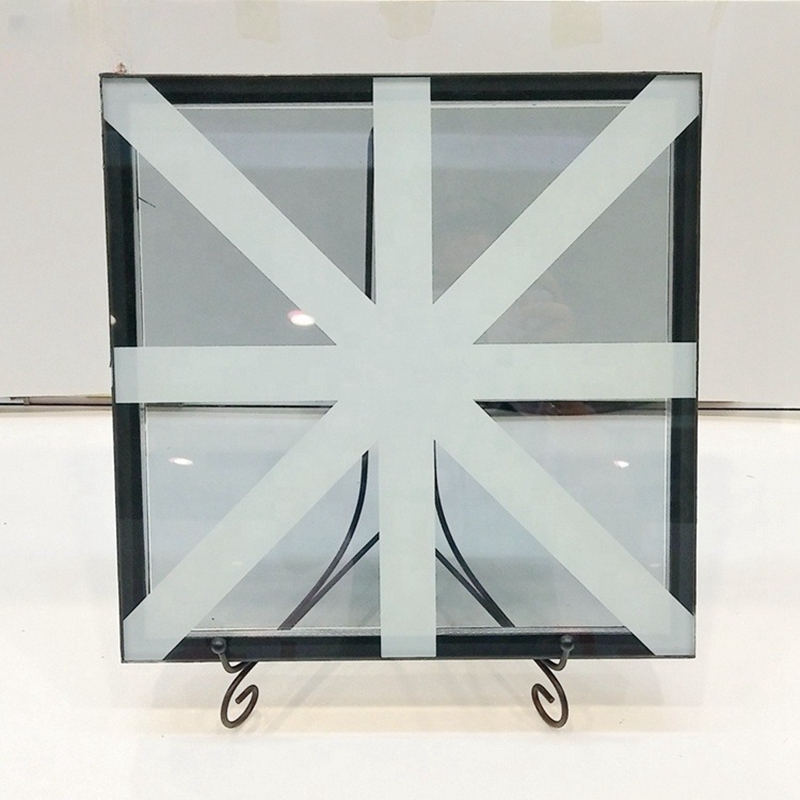

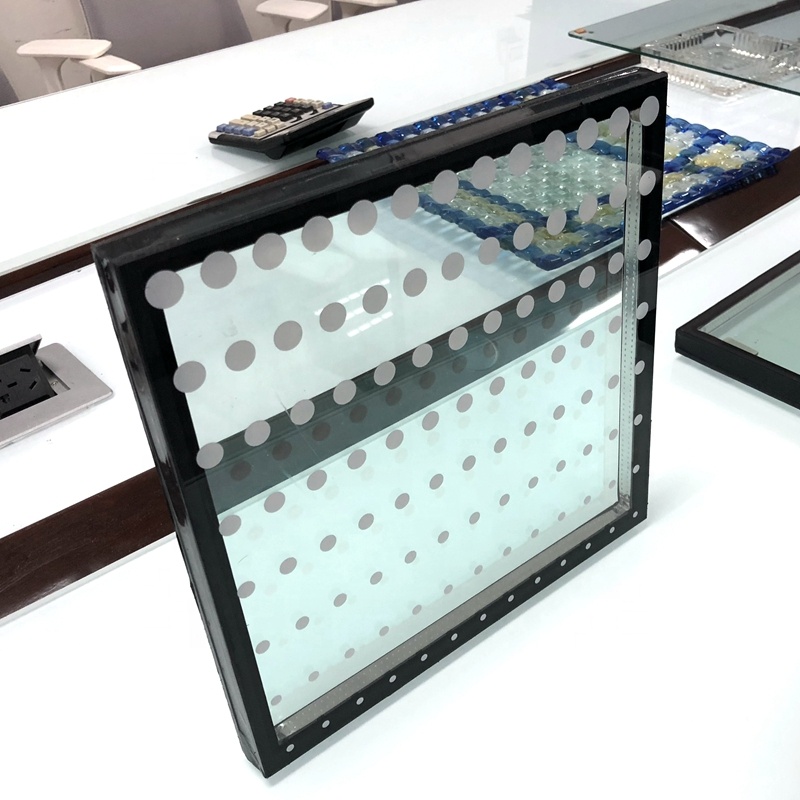

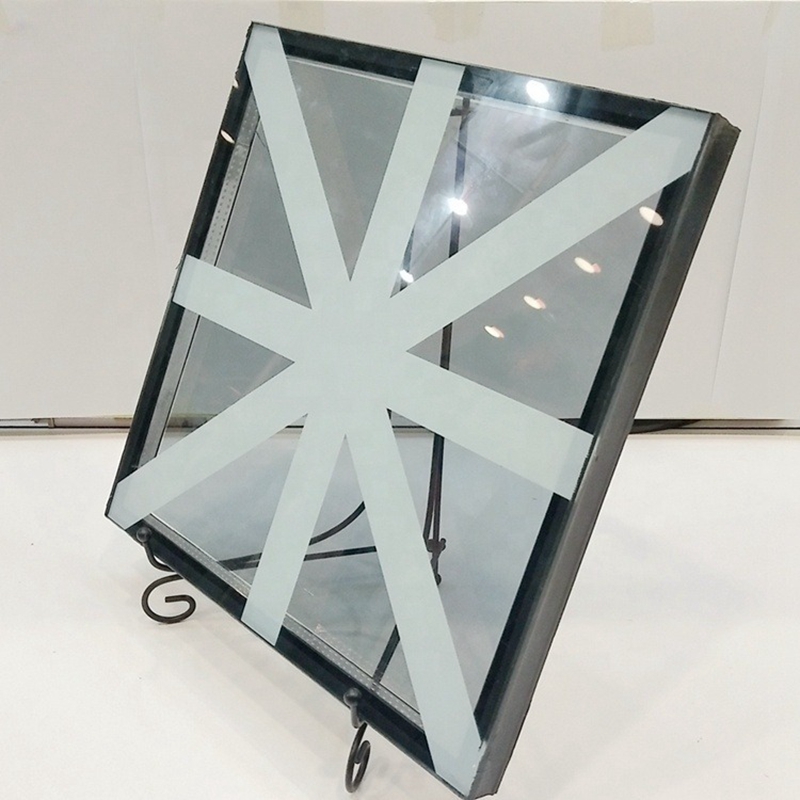

What is special design printing insulated glass:
21mm Custom Glazed Pattern Double Glazed Glass is constructed using a 6mm glazed pattern tempered glass bonded to a 6mm clear tempered glass, separated by a 9mm aluminum spacer. This premium insulated glass unit (IGU) can be filled with either air or argon gas for enhanced thermal performance. The double glazed glass system features high-strength edge sealing to effectively prevent moisture penetration.
As a high-performance insulated glass solution, this tempered glass combination offers:
Superior durability from the tempered glass layers
Excellent insulation properties of double glazed glass
Enhanced energy efficiency typical of premium insulated glass units
The double glazed glass configuration ensures optimal thermal and acoustic performance, while the tempered glass construction provides added safety. This insulated glass solution is ideal for applications requiring both aesthetic appeal and functional performance.
Product Specifications
| Glass Name | Special silkscreen printing insulated glass |
| Glass Composition | 6mm+9A+6mm;8mm+12A+8mm; etc. |
| Size | Customer customized |
| Available Air Space | 6A,9A,12A,15A,16A,18A, etc. |
| Glue type | Structural glue(For facade & Curtain wall) and Silicone glue(For window and partition) |
| Packing | Strong plywood crate with steel belt. |
| Delivery Time | 7-15days after receive the deposit. |
| Glass option | Clear tempered glass, tinted tempered glass, frosted tempered glass, reflective tempered glass, low e tempered glass, printing tempered glass, etc. |

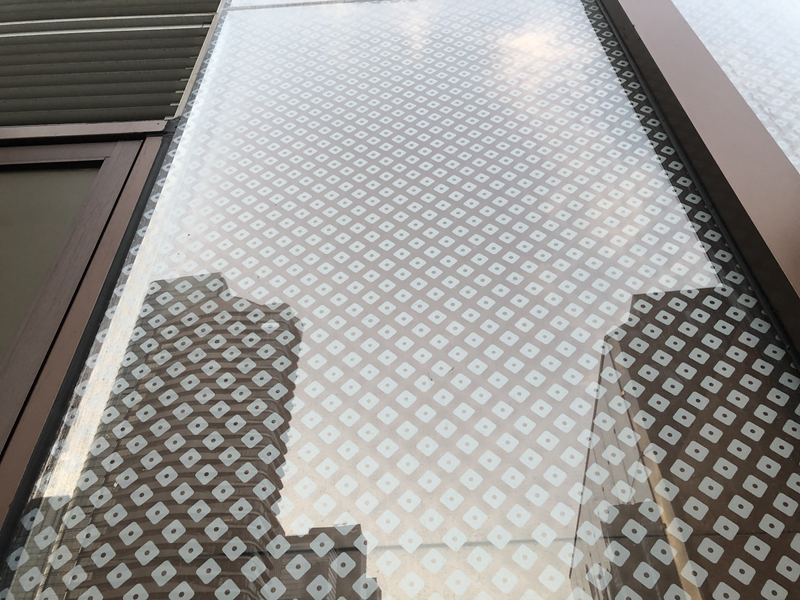

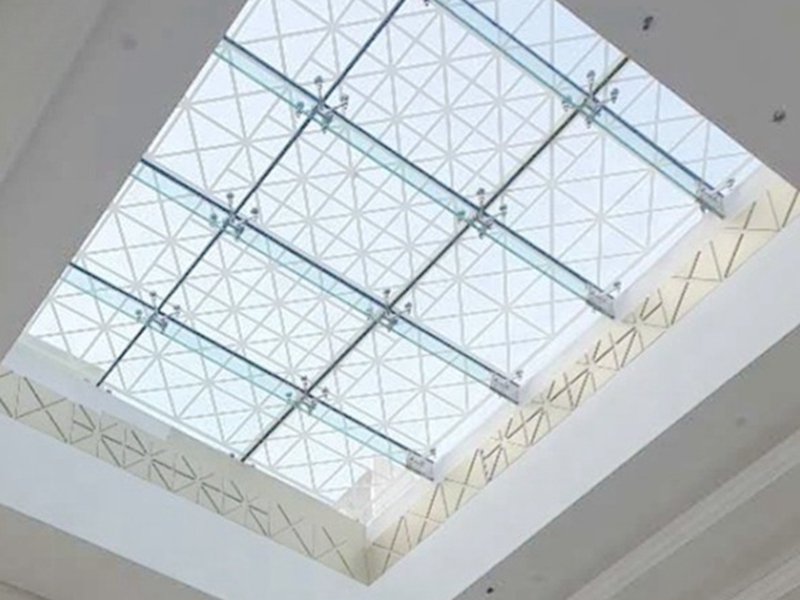

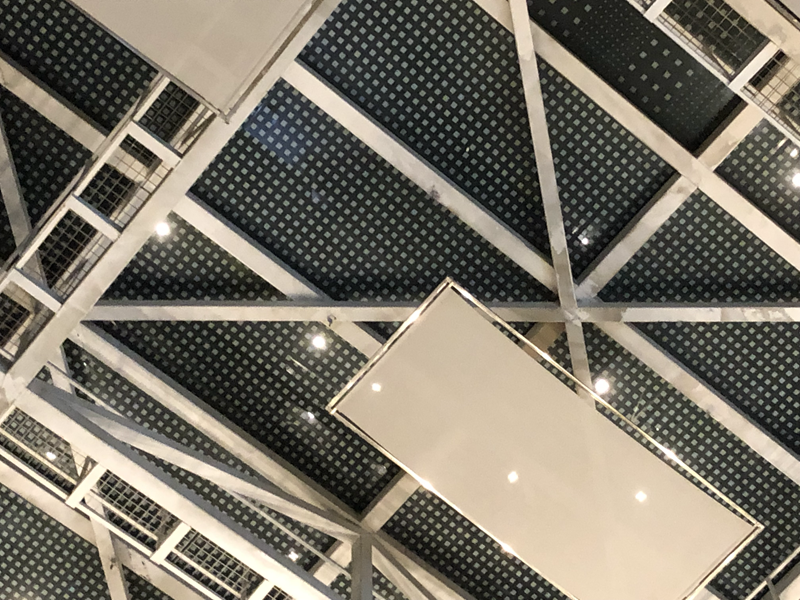

Widely used in skylight, facade, curtain wall, floor, window, door, etc.
KXGlass Business Introduction
Production Process
curved laminated glass factory
curved insulated glass supplier
curved laminated glass supplier
curved tempered glass factory
curved glass factory

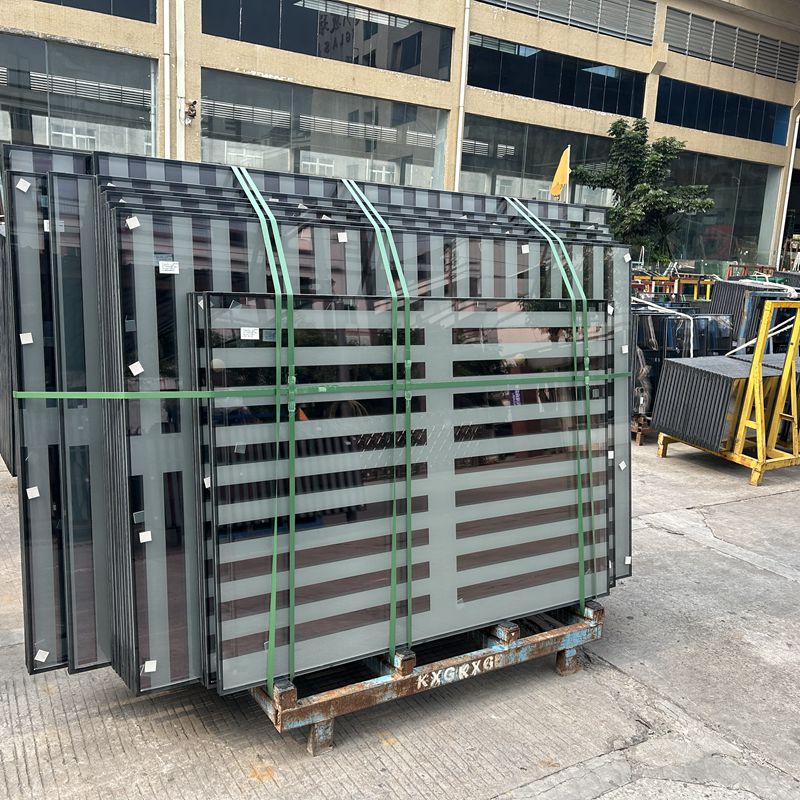

Package & Shipping
Separate each piece of glass with a cork mat.
Suitable for shipping and land transport strong export wooden /plywood crates.
Iron belt or another material belt for consolidation.
The four corners of the glass will have protective corners.
Each box contains desiccant.
Dust free
Soft Rubber Mat
Desiccant
Plywood crates
After-sales Service:
Receive automated pricing within 12 hours, including material specs and design optimization tips.
Professional design consultation and installation guidance
Monitor real-time progress via client portal: cutting, tempering, lamination, and QC stages.
Continuous updates throughout the production process
Schedule photo updates during critical phases (edge polishing, palletizing, loading).
Comprehensive shipping assistance and timely document delivery
FAQ
1.Who is KXG Industries?
KXG Industries is professional glass manufacturer, is a reputable glass deep-processing corporation in China.
2.How long is your delivery time?
Generally within 3 -4weeks.
3.What's the MOQ?
MOQ is 100 square meter.
4.How about sample fees?
Samples are free, can be ready in 1-2 weeks.
5.How is the warranty?
Five years warranty for Laminated Glass, and 10 years warranty for Tempered Glass, Insulated Glass, Windows & Doors and Curtain Wall etc.
6.How to get a quotation?
We need the information of glass composition, thickness, sizes, quantity and processing etc.
